Anatol Volt All-Electric Series Screen Printing Press - M
Starting At
The item in the image may vary from the configuration you select.
Anatol Volt All-Electric Series Screen Printing Press - M is backordered and will ship as soon as it is back in stock.
Anatol Volt All-Electric Series Screen Printing Press - M
Description

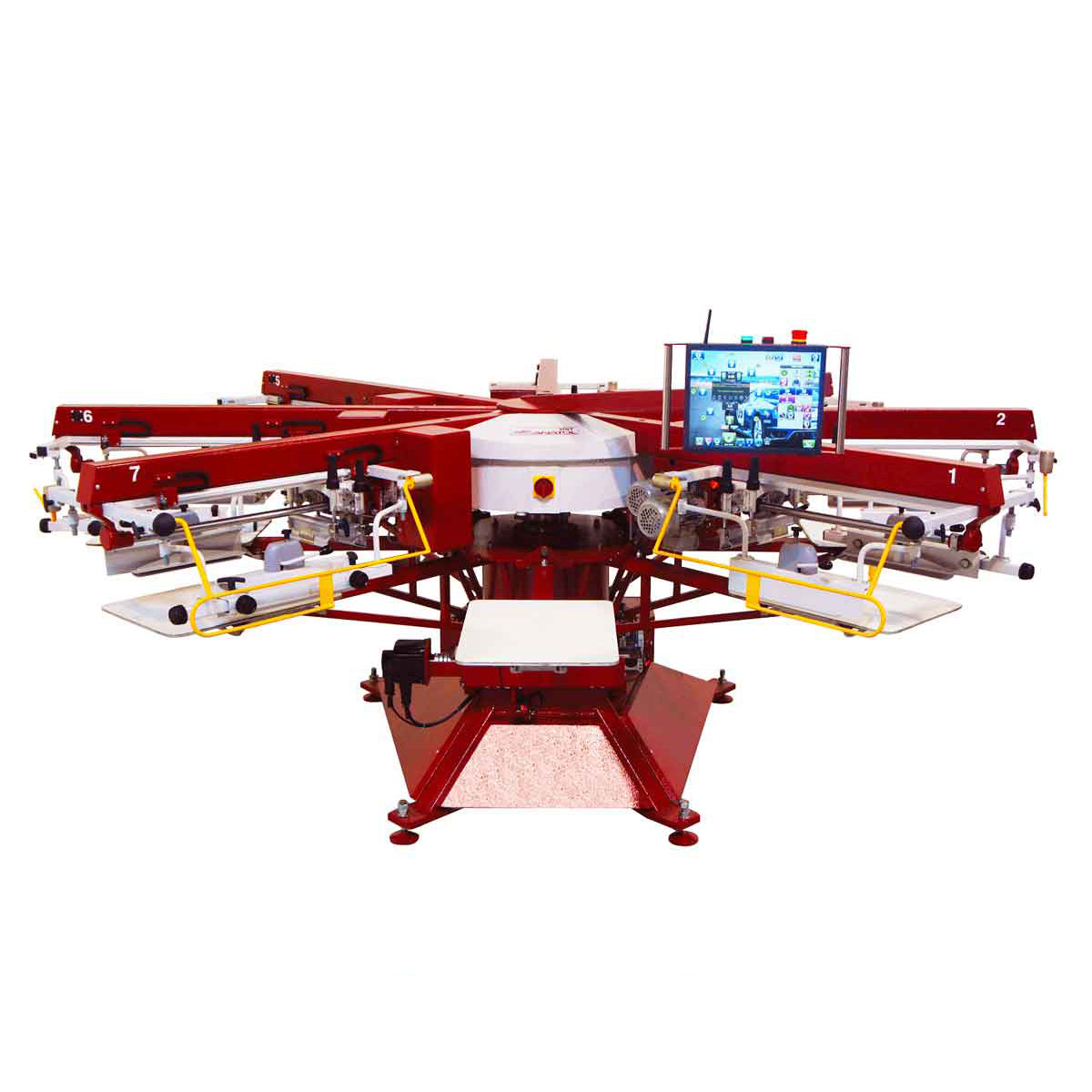

Most customers' demands can be met with this compact yet powerful t-shirt screen printing machine. The VOLT M features the most common print area, 16" x 18". The touchscreen control panel is mounted on a flexible boom arm that lets you place the controls where you need them.
The VOLT M professional-grade electric screen printing press is available in configurations from 6 stations/2 colors through 14 stations/12 colors.
Like the rest of the VOLT electric screen printing equipment, the VOLT M is all-electric and servo-driven, eliminating the need for a noisy compressor and chiller. If dependability, speed and ease of operation are what you need, then the VOLT M is the perfect choice for your shop.
| Stations Colors |
Maximum Print Area |
Maximum Screen Size |
Standard Pallet Size |
Press Diameter |
Stationary Arm or Boom Touchscreen Support |
Electrical Requirements |
|---|---|---|---|---|---|---|
| 06/02 | 16" x 18" 40.6cm x 45.7cm |
23" x 33" 58.4cm x 83.8cm |
16" x 22" 41cm x 56cm |
9'8" | Boom | 1 ph 208/230v, 50/60 Hz, 16A 3 ph 208/230v, 50/60 Hz, 9A |
| 06/03 | 16" x 18" 40.6cm x 45.7cm |
23" x 33" 58.4cm x 83.8cm |
16" x 22" 41cm x 56cm |
9'8" | Boom | 1 ph 208/230v, 50/60 Hz, 17A 3 ph 208/230v, 50/60 Hz, 10A |
| 06/04 | 16" x 18" 40.6cm x 45.7cm |
23" x 33" 58.4cm x 83.8cm |
16" x 22" 41cm x 56cm |
9'8" | Boom | 1 ph 208/230v, 50/60 Hz, 18A 3 ph 208/230v, 50/60 Hz, 11A |
| 06/05 | 16" x 18" 40.6cm x 45.7cm |
23" x 33" 58.4cm x 83.8cm |
16" x 22" 41cm x 56cm |
9'8" | Boom | 1 ph 208/230v, 50/60 Hz, 19A 3 ph 208/230v, 50/60 Hz, 12A |
| 08/06 | 16" x 18" 40.6cm x 45.7cm |
23" x 33" 58.4cm x 83.8cm |
16" x 22" 41cm x 56cm |
10'11" | Boom | 1 ph 208/230v, 50/60 Hz, 20A 3 ph 208/230v, 50/60 Hz, 13A |
| 08/07 | 16" x 18" 40.6cm x 45.7cm |
23" x 33" 58.4cm x 83.8cm |
16" x 22" 41cm x 56cm |
10'11" | Boom | 1 ph 208/230v, 50/60 Hz, 21A 3 ph 208/230v, 50/60 Hz, 14A |
| 10/08 | 16" x 18" 40.6cm x 45.7cm |
23" x 33" 58.4cm x 83.8cm |
16" x 22" 41cm x 56cm |
12'3" | Boom | 1 ph 208/230v, 50/60 Hz, 31A 3 ph 208/230v, 50/60 Hz, 18A |
| 10/09 | 16" x 18" 40.6cm x 45.7cm |
23" x 33" 58.4cm x 83.8cm |
16" x 22" 41cm x 56cm |
12'3" | Boom | 1 ph 208/230v, 50/60 Hz, 32A 3 ph 208/230v, 50/60 Hz, 19A |
| 12/10 | 16" x 18" 40.6cm x 45.7cm |
23" x 33" 58.4cm x 83.8cm |
16" x 22" 41cm x 56cm |
13'6" | Boom | 1 ph 208/230v, 50/60 Hz, 36A 3 ph 208/230v, 50/60 Hz, 20A |
| 12/11 | 16" x 18" 40.6cm x 45.7cm |
23" x 33" 58.4cm x 83.8cm |
16" x 22" 41cm x 56cm |
13'6" | Boom | 1 ph 208/230v, 50/60 Hz, 37A 3 ph 208/230v, 50/60 Hz, 21A |
| 14/12 | 16" x 18" 40.6cm x 45.7cm |
23" x 33" 58.4cm x 83.8cm |
16" x 22" 41cm x 56cm |
15'7" | Boom | 3 ph 208/230v, 50/60 Hz, 23A |
