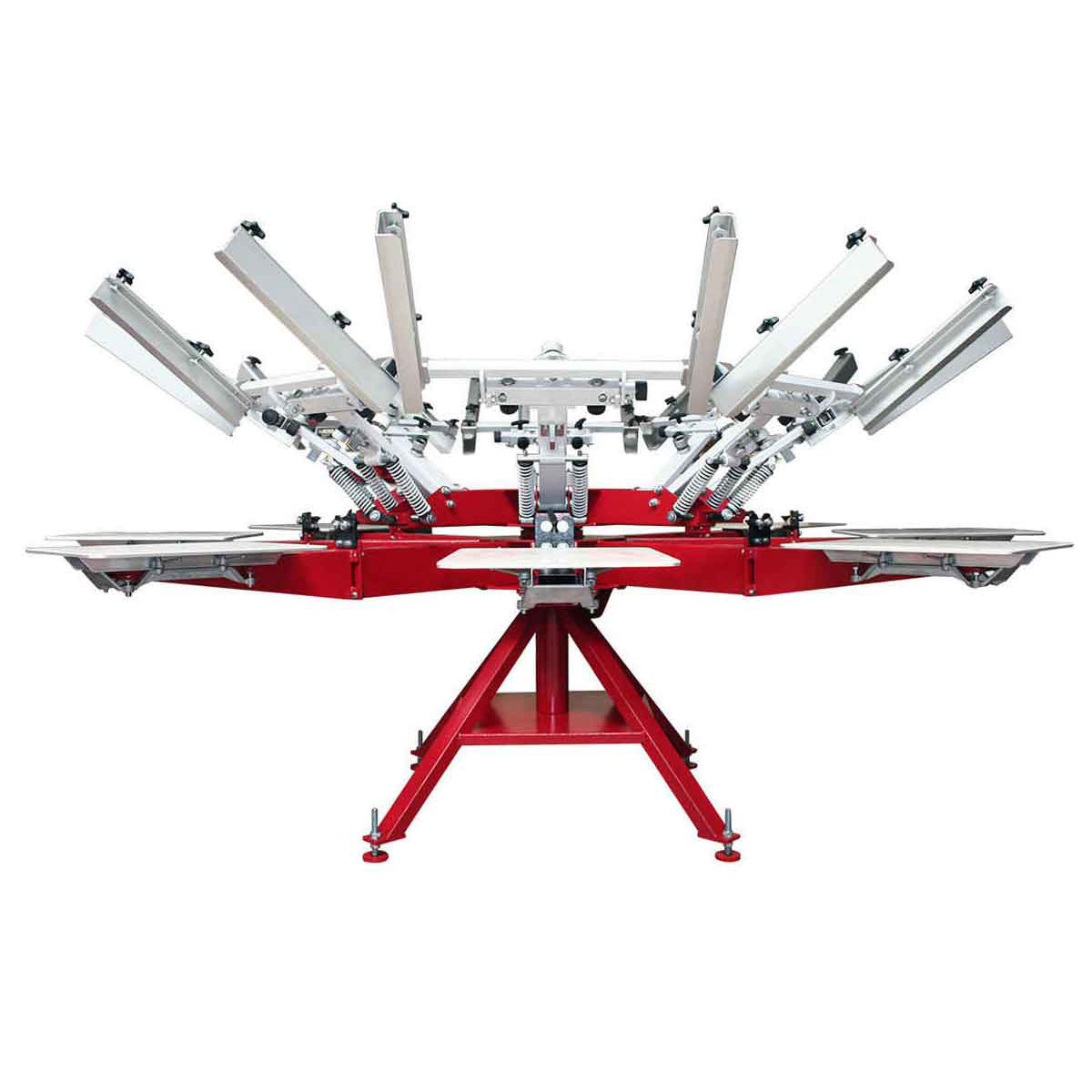

Anatol Thunder Manual Screen Printing Press
Starting At
The item in the image may vary from the configuration you select.
Anatol Thunder Manual Screen Printing Press is backordered and will ship as soon as it is back in stock.
Anatol Thunder Manual Screen Printing Press
Description
Available in configurations of 4 stations/4 colors - 12 stations/12 colors
Maximum Screen Size 26" x 36"
Maximum Print Area 21" x 28"
The Thunder is an industrial-grade manual screen printing press designed to handle high-demand printing while minimizing wear and tear on the user. The most durable manual screen printing machine on the market, the Thunder is an excellent addition as a sampling or production press. It has the same pallet arm and carousel design as the Anatol automatic t-shirt screen printing machines. The dual bearing system provides easy movement throughout the day. The Thunder is available with possible configurations of 4 Station/4 Colors, 4 Station/6 Colors, 6 Station/6 Colors, 4 Station/8 Colors, 8 Station/8 Colors, 10 Station/10 Colors and 12 Station/12 Colors.
- Gauged three-point micro-registration movement is adjustable on three points (front to back, side to side and rotational)
- Dual adjustable, guided spring tensioning system that provides a smooth lift and lower
- Side screen clamps keep screens in registration
- Off-contact and screen pitch adjustments on each print head
- All-Heads Down (on models 4s/4c, 6s/6c and 8s/8c) design lets you print any color from any print head
- 100% tool-less setups and operation
- 16" x 22" rubber-coated aluminum pallets included
- Choice of quick release or slide style pallets
- Mix and match side or back clamps at no additional charge
- Four-point pallet leveling system
- Adjustable side screen clamps
- Swivel feet on screen clamps to prevent movement while tightening
- Laser alignment system for quick and easy apparel alignment
- Double-bearing registration locks ensure top print quality with multi-color jobs
- Heavy-duty steel frame
- Upper and lower column bearings for smooth, quick operation
- Sturdy solid aluminum pallets
- Ergonomically designed for ease of use
- Small footprint accommodates tight spaces
-
- Air screen clamps
Secure the pallet instantly with the flick of switch to ensure exact registration alignment. (Requires air compressor.)
- Thunder 4 stations/4 colors
- Thunder 4 stations/6 colors
- Thunder 6 stations/6 colors
- Thunder 4 stations/8 colors
- Thunder 8 stations/8 colors
- Thunder 10 stations/10 colors
- Thunder 12 stations/12 colors
- Custom configurations available upon request
| Colors/Stations | Diameter | Max Screen Size | Max Print Size | Standard Pallet Size |
|---|---|---|---|---|
| 4/4 | 9'6" (290 cm) with screens in |
26" x 36" 66 cm x 91 cm |
21" x 28" 53 cm x 71 cm |
16" x 22" 41 cm x 56 cm |
| 6/4 | 9'6" (290 cm) with screens in |
26" x 36" 66 cm x 91 cm |
21" x 28" 53 cm x 71 cm |
16" x 22" 41 cm x 56 cm |
| 6/6 | 9'6" (290 cm) with screens in |
26" x 36" 66 cm x 91 cm |
21" x 28" 53 cm x 71 cm |
16" x 22" 41 cm x 56 cm |
| 8/4 | 10'10" (330 cm) with screens in |
26" x 36" 66 cm x 91 cm |
21" x 28" 53 cm x 71 cm |
16" x 22" 41 cm x 56 cm |
| 8/8 | 10'10" (330 cm) with screens in |
26" x 36" 66 cm x 91 cm |
21" x 28" 53 cm x 71 cm |
16" x 22" 41 cm x 56 cm |
| 10/10 | 13'9" (419 cm) with screens in |
26" x 36" 66 cm x 91 cm |
21" x 28" 53 cm x 71 cm |
16" x 22" 41 cm x 56 cm |
| 12/12 | 15'2" (462 cm) with screens in |
26" x 36" 66 cm x 91 cm |
21" x 28" 53 cm x 71 cm |
16" x 22" 41 cm x 56 cm |
