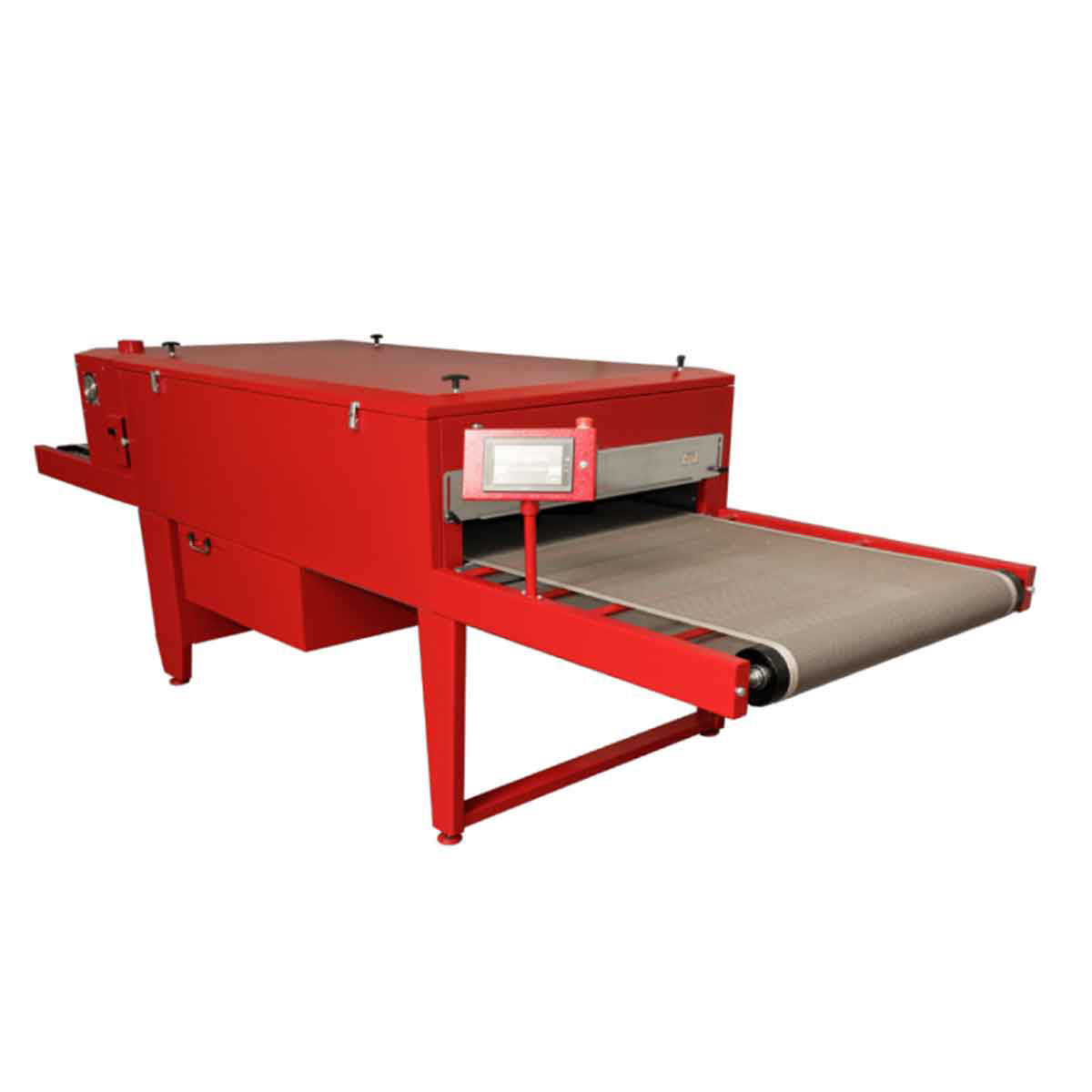

Anatol Ultra Electric Conveyor Dryer
Starting At
Regular price
$13,500.00
Unit price
/
Unavailable
The item in the image may vary from the configuration you select.
Anatol Ultra Electric Conveyor Dryer is backordered and will ship as soon as it is back in stock.
Anatol Ultra Electric Conveyor Dryer
Regular price
$13,500.00
Unit price
/
Unavailable
Description
Anatol’s Ultra forced air electric conveyor dryer is perfect for curing water-based and plastisol inks quickly and efficiently when gas is not an option.
Available in four different configurations:
Models available from 36” belt width/6’ heat chamber up to 60” belt width/10’ heat chamber
Control Panel
- 7" touchscreen control panel
- Temperature control with accuracy of +/- 1¡F
- Set desired cure time and the dryer will automatically determine the proper belt speed
- Save and recall up to 16 jobs for fast setups
- Work Schedule mode allows you to program automatic startup and cool down based on the day of the week
- View temperature and energy consumption plots in real time
Heating System
- 5" blower exchanges air in the chamber over 12 times per minute to cure water-based inks quickly and efficiently
- Long-lasting ceramic heating elements ensure even distribution of heat throughout the chamber
- Overheating alarm warns you when dryer exceeds the temperature set by the user
- Adjustable infeed/outfeed openings to accommodate a wide variety of substrates
- Heating elements can be raised and lowered
Construction
- Double wall construction with galvanized interior
- Heavy-duty multi-section construction
- Air cooled case keeps heat in and ensures the dryer stays cool to the touch
- High efficiency thermal insulation keeps heat from migrating into the workplace
Belt
- Teflon-coated fiberglass belt for maximum durability
- Heavy-duty conveyor rollers
- Industrial-grade AC motor
- Custom dryer sizes available
- Infeed/outfeed extensions per customer requirements
- Outfeed cooling fan to boost ink cooling when substrate exits the heat chamber
| Model # | Belt Width | Heat Chamber | Overall Length | Standard Infeed/Outfeed Length | Wattage | Pieces per HR. | Ceramic Elements |
|---|---|---|---|---|---|---|---|
| UED-3606-13000 | 36" | 6"0" | 11"0" | 5" | 13000 W | 400-600 | 20 |
| 92cm | 183cm | 333cm | 150cm | ||||
| UED-3610-23400 | 36" | 9"6" | 19"6" | 10" | 23400 W | 550-800 | 36 |
| 92cm | 288cm | 588cm | 300cm | ||||
| UED-4810-29250 | 48" | 9"6" | 19"6" | 10" | 29250 W | 700-950 | 45 |
| 122cm | 288cm | 588cm | 300cm | ||||
| UED-6010-39000 | 60" | 9"6" | 19"6" | 10" | 39000 W | 900-1200 | 60 |
| 152cm | 288cm | 588cm | 300cm |
