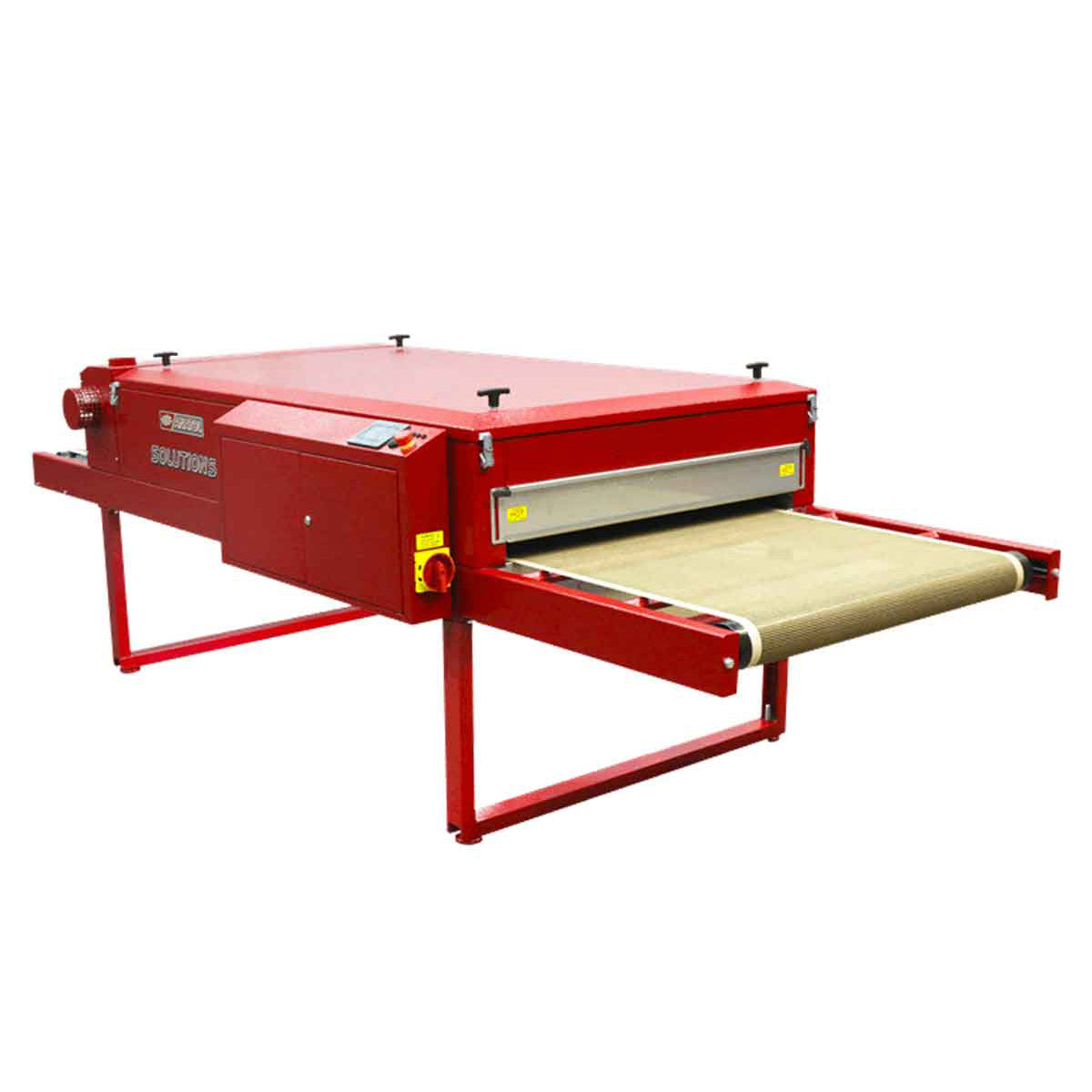

Anatol Solutions Electric Conveyor Dryer
Starting At
The item in the image may vary from the configuration you select.
Anatol Solutions Electric Conveyor Dryer is backordered and will ship as soon as it is back in stock.
Anatol Solutions Electric Conveyor Dryer
Description
When gas is not an option, Anatol electric screen printing conveyor dryers are the perfect Solution. The Solutions Series dryers are ideal for t-shirt and textile printers looking for an efficient and affordable curing unit. They feature more ceramic heating panels than similar dryers for even heat throughout the chamber. The Solutions dryers feature the same double-wall construction as Anatol's gas dryers, re-enforced with high-efficiency thermal insulation. Solutions Series electric dryers offer programmable temperature controls with automatic cool-down. Solutions electric dryers are available in seven configurations, with four basic models, from 24" belts with 4' of heat up to 60" belts with 10' of heat.
- Digital control panel
- Solid-state variable belt speed control, set in ft/min or meters/min
- Programmable temperature controller (accuracy: +/- 1¼)
- Automatic controlled start up and cool down mode
- Reversible belt direction
- 12-48 ceramic heating elements
- Adjustable heat panels (raise or lower)
- Industrial grade AC motor
- Double wall insulation with galvanized interior
- Heavy-duty multi-section construction
- Air-cooled control cabinet
- Stainless steel slide out filters (larger models only)
- Adjustable infeed/outfeed openings
- Teflon-coated fiberglass belt
- Heavy-duty conveyor rollers
-
- Infeed/outfeed exhaust hoods
- Custom infeed/outfeed extensions
Allow you to run a press on each side of the infeed belt.
-
- Outfeed cooling fan
Cools garments more quickly and ensures ink is cured before it's removed from the belt.
-
- Single phase
Accommodates facilities with single phase power requirements.
| Model # | Belt Width | Oven Length | Overall Length | Standard Infeed/Outfeed Length | Wattage | Pieces per HR. | Ceramic Elements | Electrical Requirements | Exhaust Duct Size |
|---|---|---|---|---|---|---|---|---|---|
| SED-2404A-5850 | 24" | 4"0" | 9"0" | 5"0" | 5850 W | 120-200 | 9 | 1 Ph, 208-230 V, 5.85 kW, 29A, 50/60Hz 3 Ph, 208-230 V, 5.85 kW, 17A 50/60 Hz |
4" |
| 61cm | 122cm | 274cm | 150cm | 10cm | |||||
| SED-2404S-7800 | 24" | 4"0" | 9"0" | 5"0" | 7800 W | 150-250 | 12 | 1 Ph, 208-230 V, 7.8 kW, 38A, 50/60Hz 3 Ph, 208-230 V, 7.8 kW, 23A 50/60 Hz |
4" |
| 61cm | 122cm | 274cm | 150cm | 10cm | |||||
| SED-3606A-15600 | 36" | 6"0" | 11"0" | 5"0" | 15600 W | 400-600 | 24 | 1 Ph, 208-230 V, 15.6 kW, 76A, 50/60 Hz 3 Ph, 208-230 V, 15.6 kW, 43A 50/60 Hz |
4" |
| 92cm | 183cm | 360cm | 150cm | 10cm | |||||
| SED-3610A-23400 | 36" | 9"6" | 19"6" | 10"0" | 23400 W | 550-800 | 36 | 3 Ph, 208-230 V, 23.4 kW, 66A 50/60 Hz | 4" |
| 92cm | 290cm | 615cm | 300cm | 10cm | |||||
| SED-4810A-26000 | 48" | 9"6" | 19"6" | 10"0" | 26000 W | 700-950 | 40 | 3 Ph, 208-230 V, 27.3 kW, 77A 50/60 Hz | 6" |
| 122cm | 290cm | 590cm | 300cm | 15cm | |||||
| SED-6010A-31200 | 60" | 9"6" | 19"6" | 10"0" | 31200 W | 900-1200 | 48 | 3 Ph, 208-230 V, 35.1 kW, 98A 50/60 Hz | 6" |
| 152cm | 290cm | 590cm | 300cm | 15cm |
