Bluewater Reclaiming Systems

Description

Bluewater combines necessary features into a single, automated procedure for effective screen cleaning. Our screen cleaners use cutting-edge technology to restore screens from beginning to end. These creative ideas reduce workplace hazards and labor expenses in addition to minimizing human mistakes.

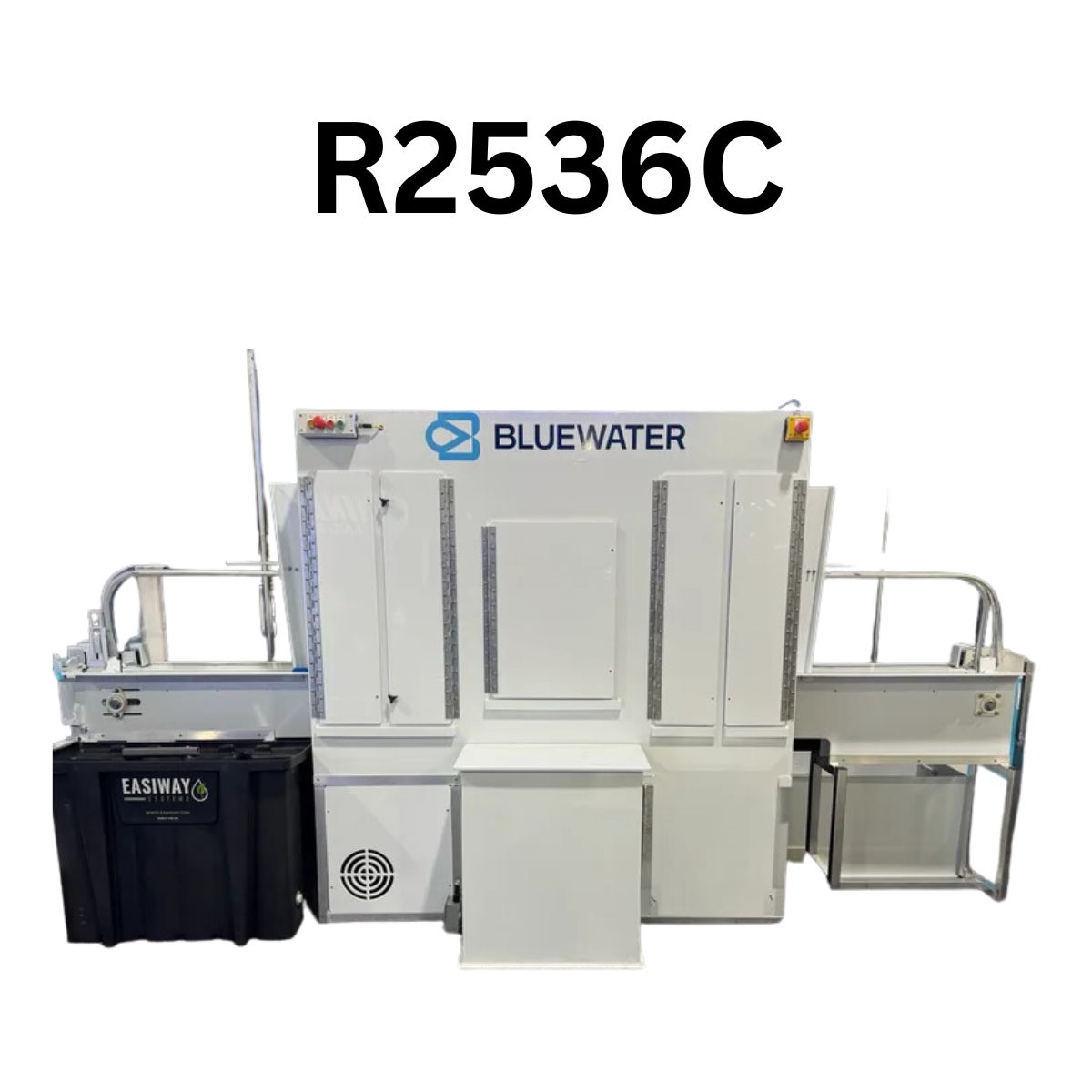

R-2536C

Machine Specifications

• Body Width: 24" or 36" with recirculation tank
• Body Length: 71.0"
• Body Height: 75.0"
• Screens Per Hour: 13 Screens per hour

Machine Requirements

• Air: 8 cfm @ 100psi
• Electrical:
• 208/230V, 3ph, 24A, 50/60Hz
• 208/230V, 1ph, 44A 50/60Hz
• Water: 1 x 1" NPT Standard Fitting
• Drain: 3/4" or 1 1/4" NPT Utility Pump
• Max Frame Size: 25" x 36"
• Minimum Machine Length: 12'3"

Machine Options

• Infeed Length: 36"
• Outfeed Length: 36"

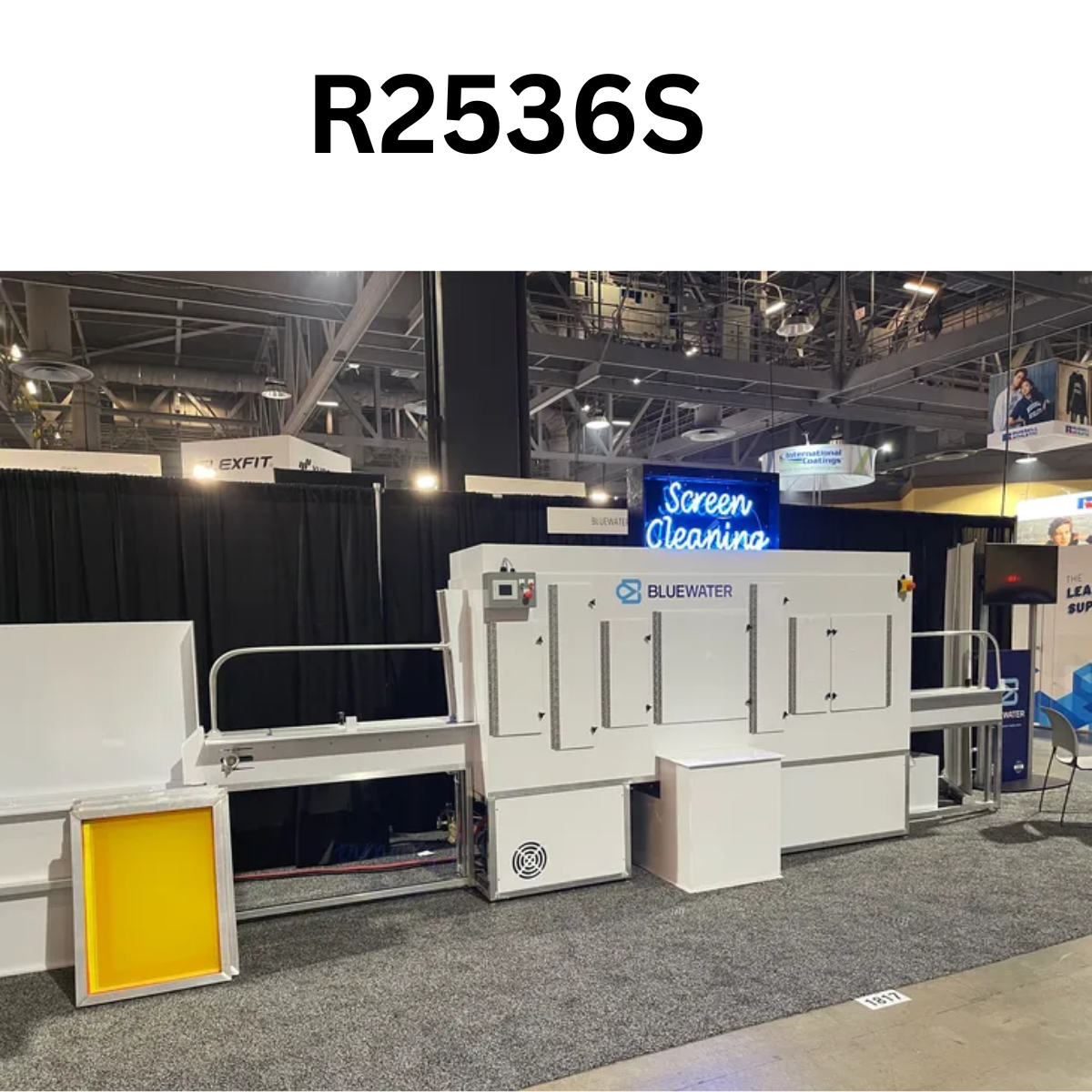

R-2536S

Machine Specifications

• Body Width: 24" or 36" with recirculation tank
• Body Length: 120.0"
• Body Height: 75.0"
• Screens Per Hour: 25 Screens per hour

Machine Requirements

• Air: 8 cfm @ 100psi
• Electrical: 208/230V, 3ph, 60A, 50/60Hz
• Water: 1 x 1" NPT Standard Fitting
• Drain: 3/4" or 1 1/4" NPT Utility Pump
• Max Frame Size: 25" x 36"
• Minimum Machine Length: 18'6"

Machine Options

• Infeed Length Options: 54" or 72"
• Outfeed Length: 47" or 94"
• Infeed Soak Tank: Optional Upgrade (adds 44.0")
• Outfeed Booth: Optional Upgrade (adds 60.0") * outfeed length 24"

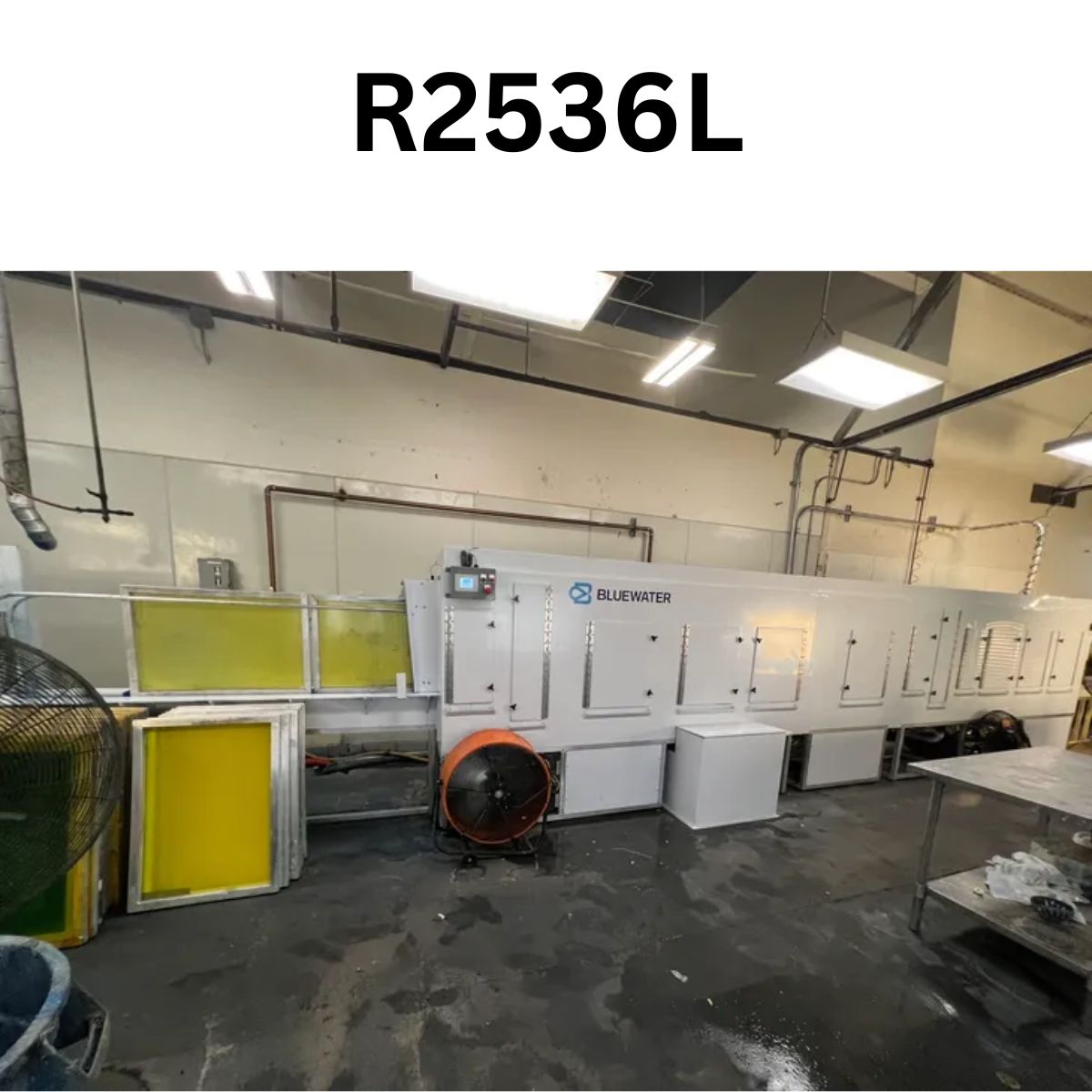

R-2536L

Machine Specifications

• Body Width: 24" or 36" with recirculation tank
• Body Length: 240.0"
• Body Height: 75.0"
• Screens Per Hour: 75 Screens per hour

Machine Requirements

• Air: 10 cfm @ 100psi
• Electrical: 208/230V, 3ph, 115A, 50/60Hz
• Water: 2 x 1" NPT Standard Fitting
• Drain: 3/4" or 1 1/4" NPT Utility Pump
• Max Frame Size: 25" x 36"
• Minimum Machine Length: 28'10"

Machine Options

• Infeed Length Options: 54" or 72"
• Outfeed Length: 47" or 94"
• Infeed Soak Tank: Optional Upgrade (adds 44.0")
• Outfeed Booth: Optional Upgrade (adds 60.0") * outfeed length 24"
