Anatol  |  SKU: SHO-ANA-VOLT-XL

Anatol Volt All-Electric Series Screen Printing Press - XL

Starting At

$72,930.00

The item in the image may vary from the configuration you select.

Call 1-800-967-4070 to Order

We understand that expanding your shop requires reliable equipment and exceptional service. Our dedicated team is committed to ensuring that your purchase arrives safely and promptly, ready to support your growing business.

For inquiries or to place an order, please call us at 1-800-967-4070.

Financing Available
See Financing Options

Technical Data Sheet (TDS)

Description



The VOLT XL electric screen printing machine is designed to accommodate the ever-increasing demand for larger print areas. The 20" x 28" print area will handle almost all of your customers needs. Speed, reliability, and ease of use are the trademarks of the Volt XL.

The VOLT XL professional electric screen printing press is available in two standard configurations:

  1. The VOLT XL 8 station/6 colors through 12 station/10 colors have a 15" touchscreen mounted on a flexible boom arm that lets you move the controls to any station. (A 17" touchscreen is available as an optional feature.)
  2. 18 station/16 color through 20 station/18 color models come with a stationary 17" touchscreen control panel and individual membrane control panels to give you complete control of each print station. Supports on each print head give you additional support for smooth print runs every time.

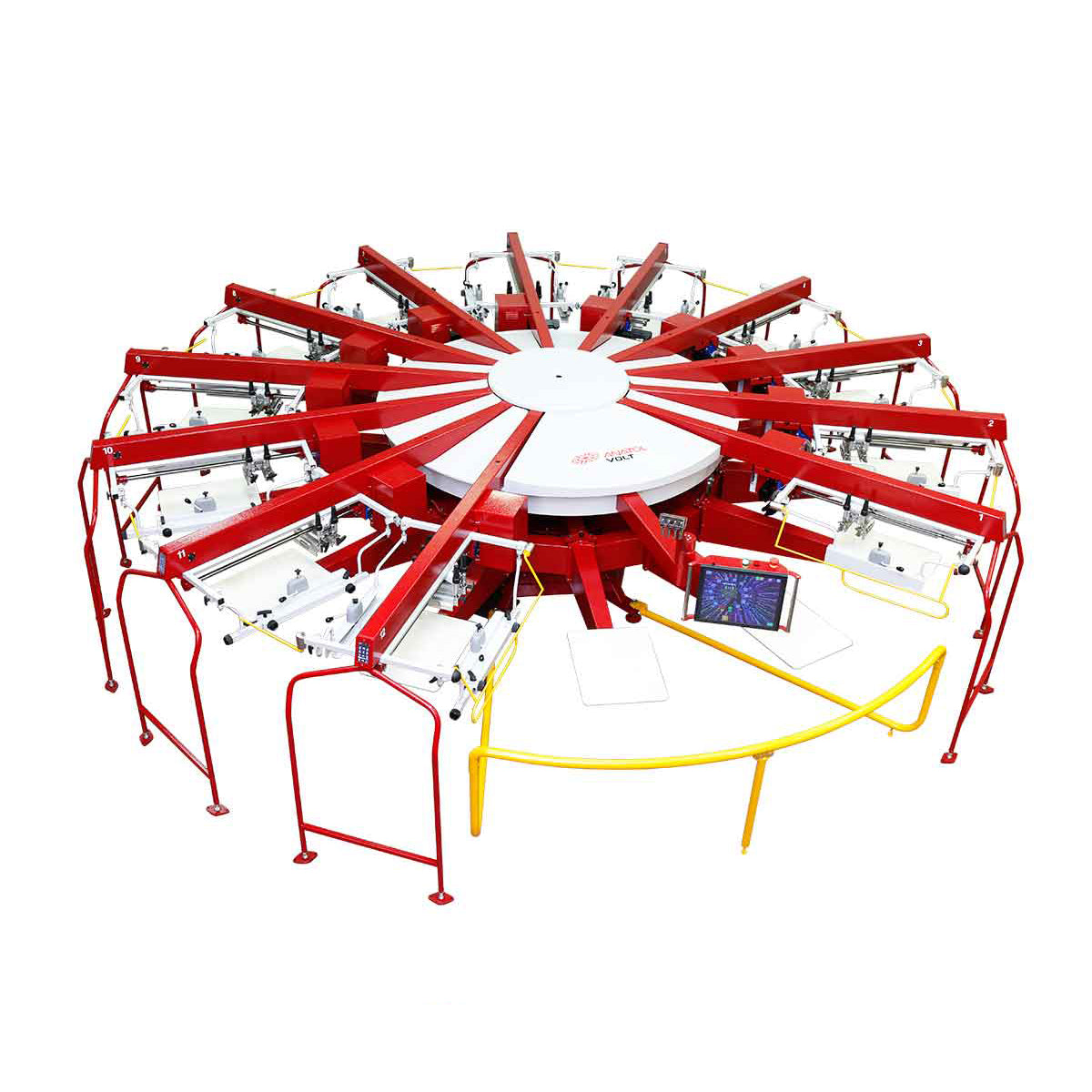

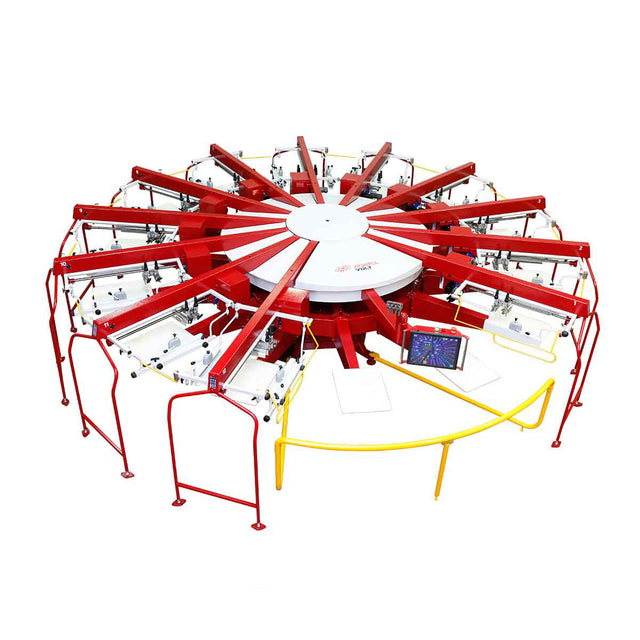

Volt XL 14-12 shown with optional servo print heads

Stations
Colors		 Maximum
Print Area		 Maximum
Screen Size		 Standard
Pallet Size		 Press
Diameter		 Stationary Arm
or Boom
Touchscreen Support		 Electrical Requirements
08/06 20" x 28"
50.8cm x 71cm		 26" x 43"
66cm x 109.2cm		 16" x 22"
41cm x 56cm		 13'10" Boom 1 ph 208/230v, 50/60 Hz, 20A
3 ph 208/230v, 50/60 Hz, 13A
08/07 20" x 28"
50.8cm x 71cm		 26" x 43"
66cm x 109.2cm		 16" x 22"
41cm x 56cm		 13'10" Boom 1 ph 208/230v, 50/60Hz, 21A
3 ph 208/230v, 50/60 Hz, 14A
10/08 20" x 28"
50.8cm x 71cm		 26" x 43"
66cm x 109.2cm		 16" x 22"
41cm x 56cm		 15' Boom 1 ph 208/230v, 50/60 Hz, 31A
3 ph 208/230v, 50/60 Hz, 18A
10/09 20" x 28"
50.8cm x 71cm		 26" x 43"
66cm x 109.2cm		 16" x 22"
41cm x 56cm		 15' Boom 1 ph 208/230v, 50/60 Hz, 32A
3 ph 208/230v, 50/60 Hz, 19A
12/10 20" x 28"
50.8cm x 71cm		 26" x 43"
66cm x 109.2cm		 16" x 22"
41cm x 56cm		 16'6" Boom 1 ph 208/230v, 50/60 Hz, 36A
3 ph 208/230v, 50/60 Hz, 20A
12/11 20" x 28"
50.8cm x 71cm		 26" x 43"
66cm x 109.2cm		 16" x 22"
41cm x 56cm		 16'6" Boom 1 ph 208/230v, 50/60 Hz, 37A
3 ph 208/230v, 50/60 Hz, 21A
14/12 20" x 28"
50.8cm x 71cm		 26" x 43"
66cm x 109.2cm		 16" x 22"
41cm x 56cm		 18' Stationary Arm 3 ph 208/230v, 50/60 Hz, 23A
16/14 20" x 28"
50.8cm x 71cm		 26" x 43"
66cm x 109.2cm		 16" x 22"
41cm x 56cm		 19'6" Stationary Arm 3 ph 208/230v, 50/60 Hz, 32A
18/16 20" x 28"
50.8cm x 71cm		 26" x 43"
66cm x 109.2cm		 16" x 22"
41cm x 56cm		 20'10" Stationary Arm 3 ph 208/230v, 50/60 Hz, 36A
20/18 20" x 28"
50.8cm x 71cm		 26" x 43"
66cm x 109.2cm		 16" x 22"
41cm x 56cm		 22'8" Stationary Arm 3 ph 208/230v, 50/60 Hz, 38A
